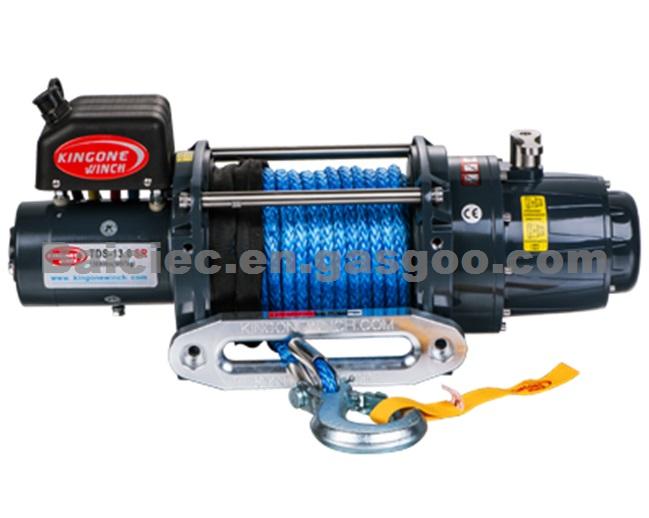

AC Winch TDS-13.0 SR

AC Winch TDS-13.0 SR
AC Winch TDS-13.0 SR
Previous
Next
Minimum Order:

5Piece/Pieces

Export Ratio:

81% - 90%

Quality Certificate:

ISO 9001

Samples:

Charge

Place of Region:

China

Payment Terms:

T/T

Price Terms:

FOB

Market Type:

After Market

Packing:

Carton

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

AC Winch TDS-13.0 SR

Product Attribute:

Line Pull:13000lbs

Application:

Kingone

Product Description:



TDS-13.0 SR Specification
Line Pull 5897kgs/13000lbs
Motor 12V/6.0HP 24V/3.6HP
Brake 100% full load double cone braking
Gear Train Three stage
Gear Ratio 2611
Freespooling Clutch Rotating ring gear
Synthetic Rope Size
11/28"*83"(10mm*25M)
Drum Size
3.5"*8.1"(
89mm*206mm)
Package
Winch Weight 101.4lbs/46kgs(Synthetic Rope)
Gross Weight 119lbs/54kgs(Synthetic Rope)
Box Dimension 28"*10"*17.7"(710*255*450mm)
Layer of wire rope Max Line pull
1 5897kgs/13000lbs
2 4752kgs/10475lbs
3 4091kgs/9017lbs
4 3590kgs/7915lbs
5 3220kgs/7100lbs

AC Winch TDS-13.0 SR
AC Winch TDS-13.0 SR
