Beijing Automotive Industry Imp. & Exp. Co., Ltd. Main Products :Starter Alternator Heater Fan Hydraulic Clutch Cylinder Lift
HomeProductsWinchAC Winch TDS-16.5C SR

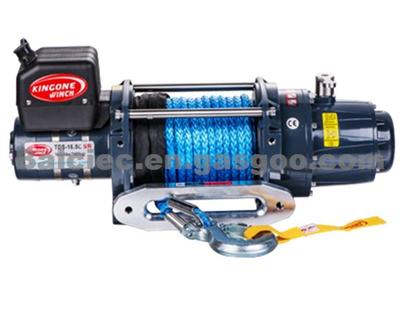

AC Winch TDS-16.5C SR

AC Winch TDS-16.5C SR
AC Winch TDS-16.5C SR
Minimum Order:

5Piece/Pieces

Export Ratio:

81% - 90%

Quality Certificate:

ISO 9001

Samples:

Charge

Place of Region:

China

Payment Terms:

T/T

Price Terms:

FOB

Market Type:

After Market

Packing:

Carton

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

AC Winch TDS-16.5C SR

Product Attribute:

Line Pull:16500lbs

Application:

Kingone

Product Description:



TDS-16.5SR
TDS-16.5C SR
Specification
Line Pull 7485kgs/16500lbs
Motor 12V/6.0HP 24V/3.6HP
Brake 100% full load double cone braking
Gear Train Three stage
Gear Ratio 3151
Freespooling Clutch Rotating ring gear
Synthetic Rope Size
7/16"*83"(11mm*25M)
Wire Rope Type Aircraft A7*19
Drum Size
3.5"*8.1"(
89mm*206mm)
Package
Winch Weight 103.6lbs/47kgs(Synthetic Rope)
Gross Weight 121.2lbs/55kgs(Synthetic Rope)
Box Dimension 28"*10"*17.7"(710*255*450mm)
Layer of wire rope Max Line pull
1 7485kgs/16500lbs
2 5576kgs/12292lbs
3 4724kgs/10413lbs
4 4097kgs/9033lbs

AC Winch TDS-16.5C SR
AC Winch TDS-16.5C SR
